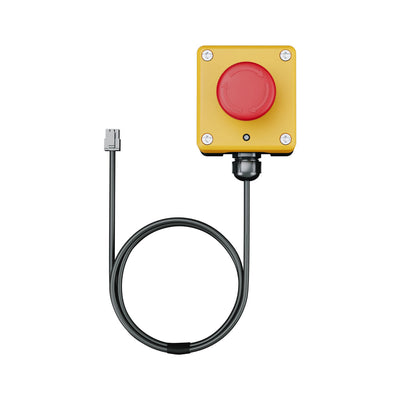

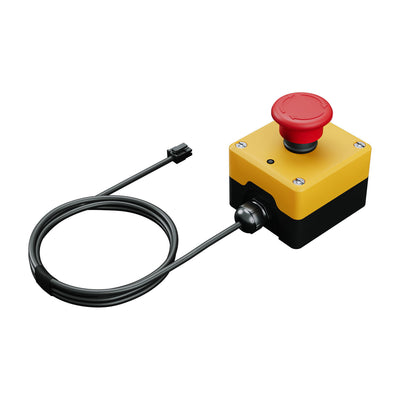

Qubic System - Motion Lock Switch

The Motion-Lock Switch (QS-SBML-1) is the switch used to operate the MOTION-LOCK Sub-System: an advanced, dual-channel module that can instantly stop the operation of all your connected Qubic System devices. The switch also continuously monitors the cabling and detects loose, damaged, or incorrectly connected cables.

Key Features

• Instant stop for your entire setup: stop all connected Qubic System devices at the push of a button.
• Dual electrical contacts: if one contact fails, the other stops immediately — faults are automatically detected and reported.
• Status LED: flashes during movement, stays lit continuously once everything is stopped, for immediate visual overview.
• Professional components: complies with IEC 60947-5-1 and VDE 0660 for long-term reliability.
• Multiple devices in one chain: connect an almost unlimited number of compatible devices via up-link/down-link, or create independent circuits per device.
• Manually tested: every unit is individually tested before being shipped.
• Wide compatibility: works with all Qubic System devices equipped with the MOTION-LOCK Sub-System.

Specifications

• Model number: QS-SBML-1
• Type: Dual-state stop switch
• Standardization: IEC 60947-5-1, VDE 0660
• Contacts: 2x independent electrical contacts
• Status indication: integrated LED
• Produced in: Poland (EU)

Do you want to be able to stop your entire motion setup in a fraction of a second?

With the Motion-Lock Switch, you always have immediate control, no matter where you are sitting.
