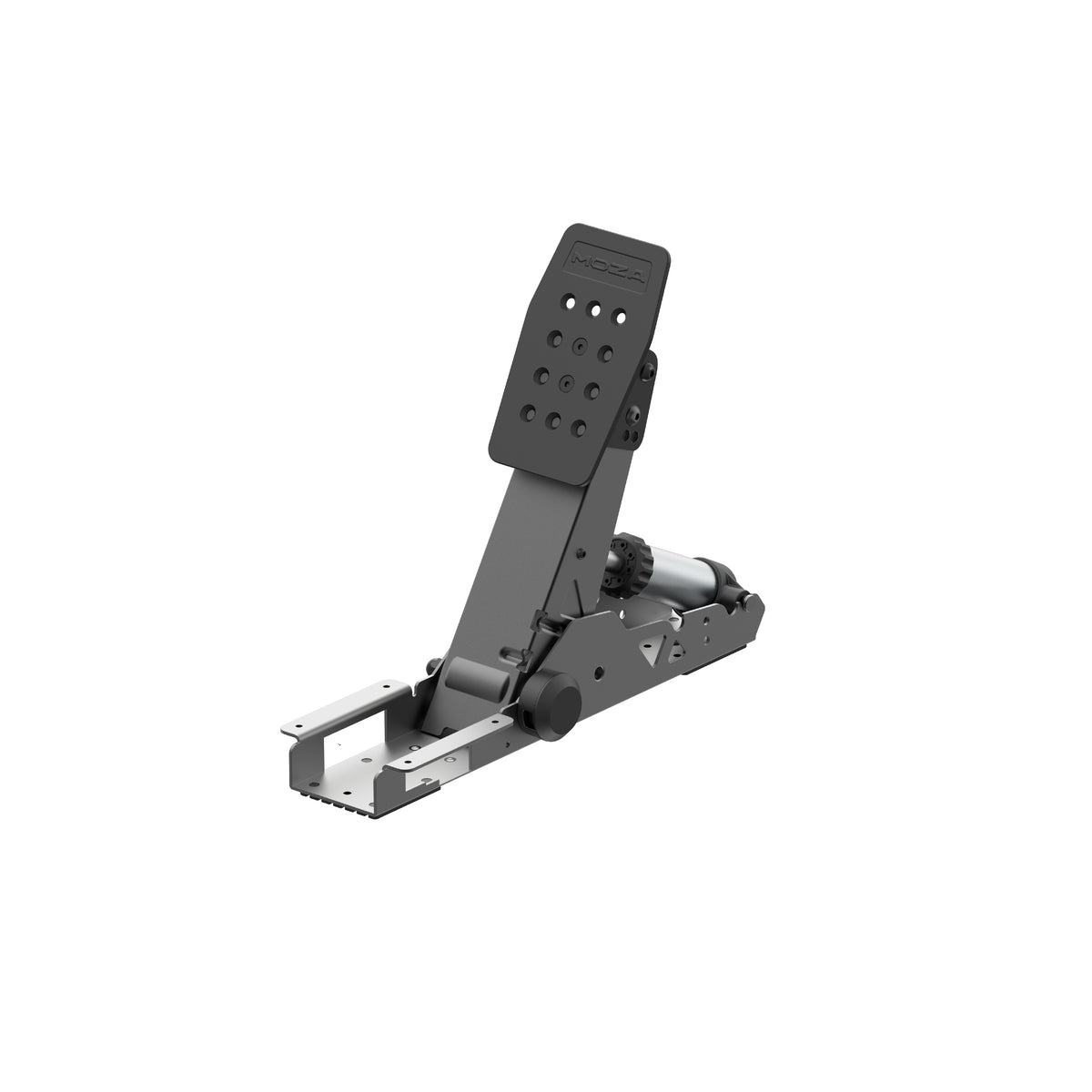

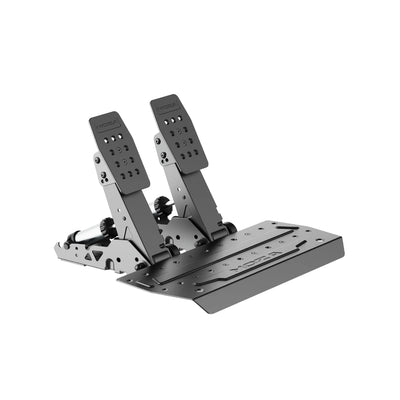

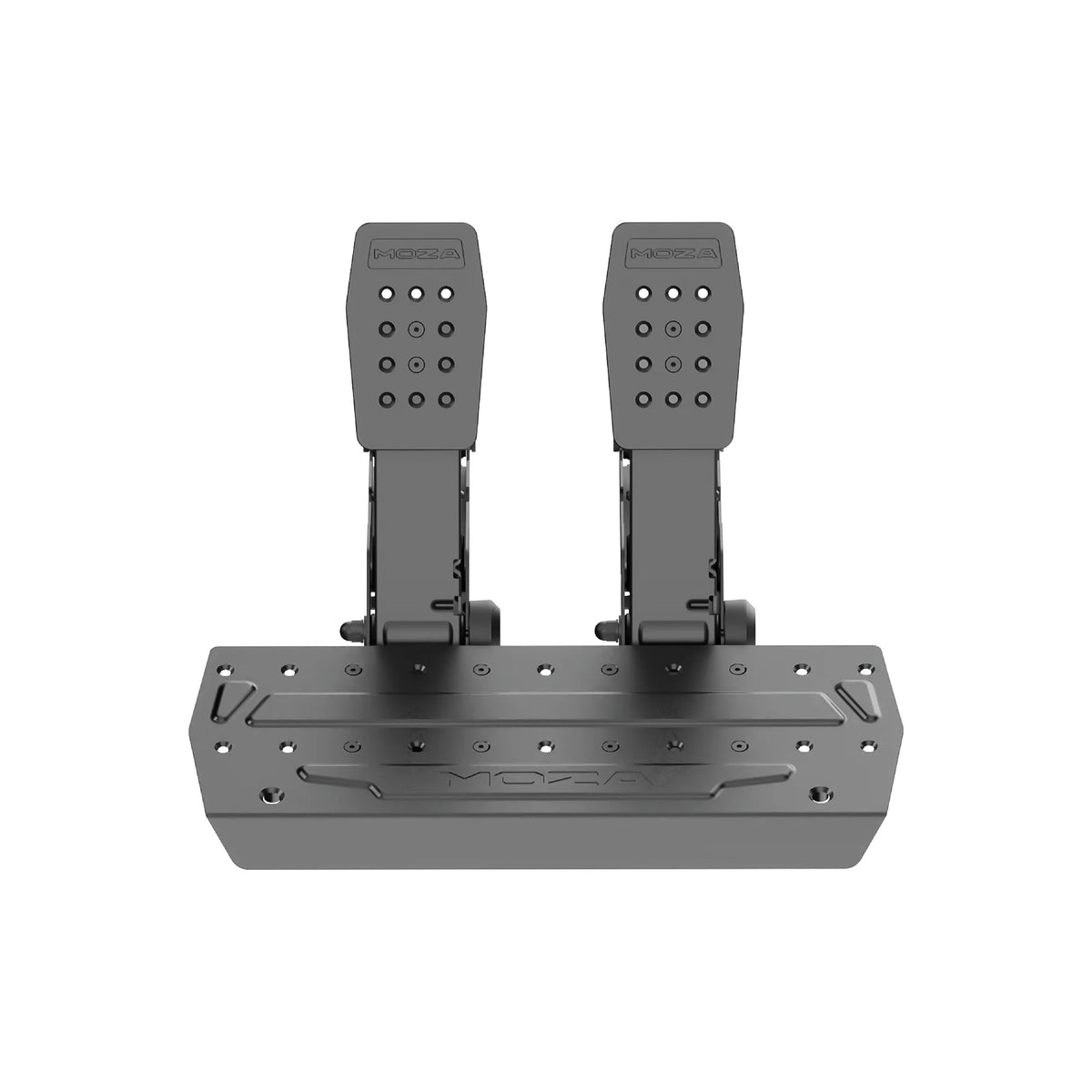

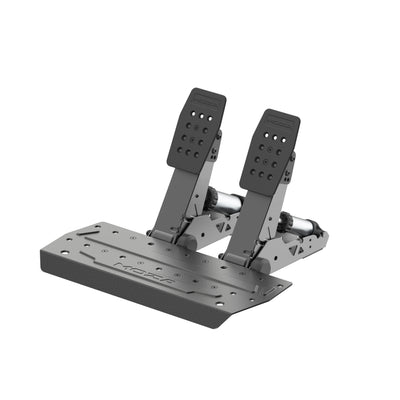

MOZA SRP2 Load Cell Pedals

The MOZA SRP2 combines a 100kg load cell with a 15-bit angle sensor using patented sensor fusion technology, for brake detection that responds to both force and muscle memory. Thanks to interchangeable elastomers and three spring stiffnesses, 25 different brake feel settings are available out of the box.

Key Features

• Hybrid load cell + angle sensor: Patented sensor fusion combines 100kg load cell precision with 15-bit angle measurement for razor-sharp brake detection.
• 25 brake feel settings as standard: Swap between elastomers and three spring stiffnesses (60/70/80), or expand to 1000+ settings with the optional Performance Kit.
• Fully adjustable angle and position: 25° angle adjustment, 15mm left/right and 36mm height adjustment per pedal.
• Tool-free adjustment: Adjust brake feel and force levels in seconds, without tools.
• Quiet, smooth operation: Enclosed slide construction and polished steel shafts with end-point damping, for minimal noise production.
• MOZA Pit House software: Monitor pedal performance, adjust trajectory and signal curves, and view real-time data.
• Xbox and PC compatible: Connect directly via USB to your PC, or use them on Xbox via a compatible ESX wheel.

Specifications

• Technology: Hybrid load cell + angle sensor
• Brake pressure: 0-100 kg (load cell range)

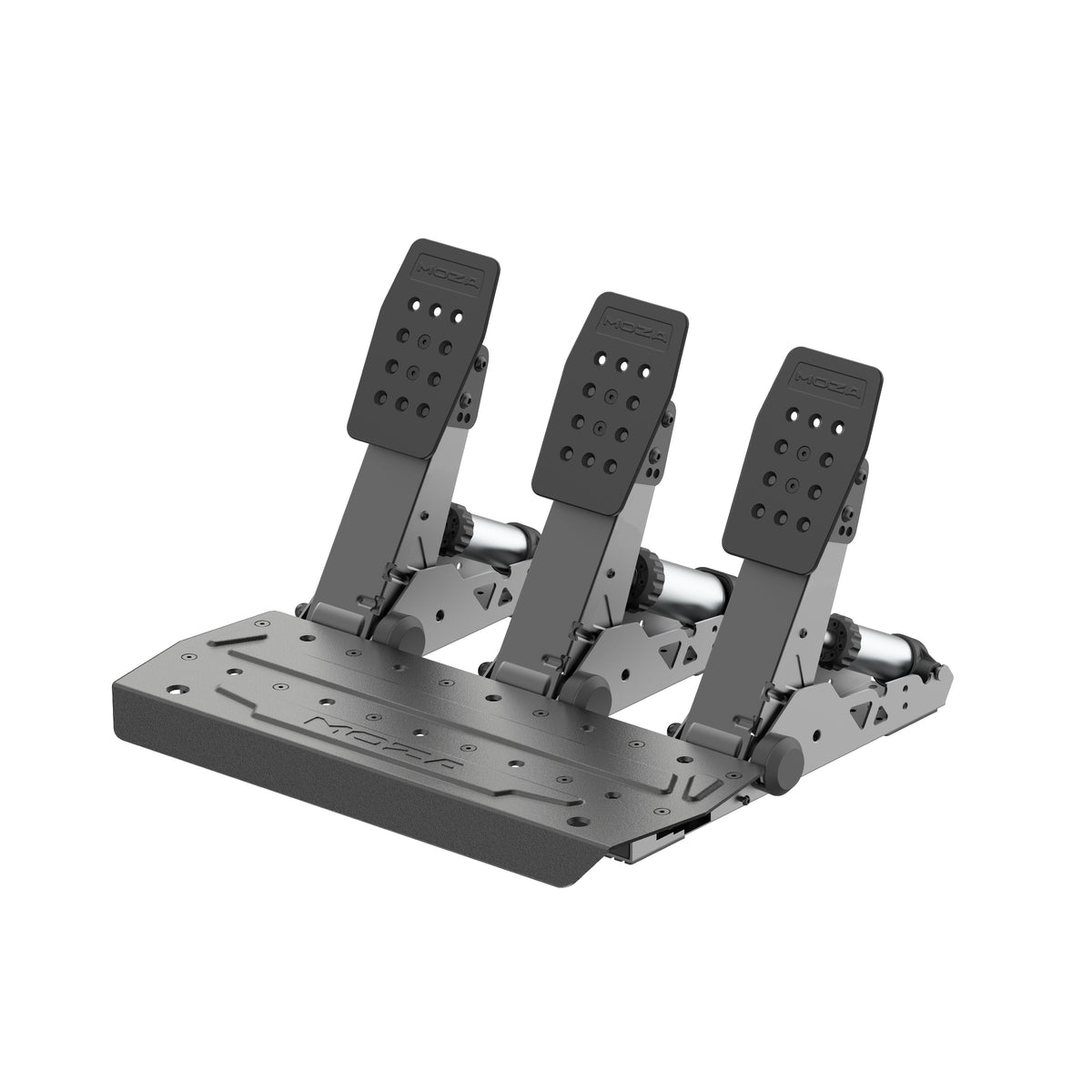

• Configuration: 3 pedals (gas, brake, clutch)
• Material: High-strength steel (pedals and base), aerospace-grade aluminum components (CNC-machined, anodized)
• Angle adjustment: 25°
• Position adjustment: 15mm left/right, 36mm height
• Angle sensor resolution: 15-bit (32,768 PPR)
• Platform: PC, Xbox (via ESX wheel)
• Software: MOZA Pit House

Included

• SRP2 pedal set
• 2x elastomer sets: for brake feel adjustment

Want to feel brake pressure like professional drivers do?

With the MOZA SRP2, you can fine-tune every detail of your pedals, from brake feel to position, for your perfect driving style.
