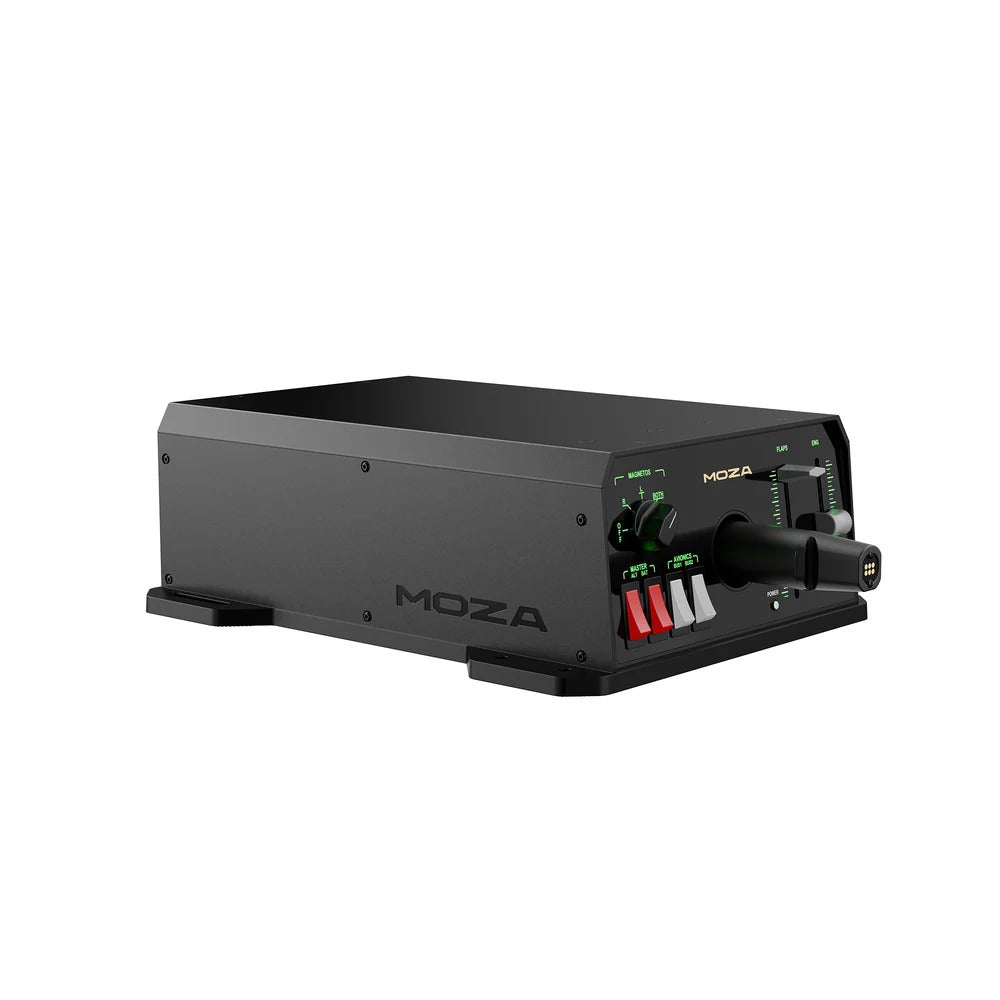

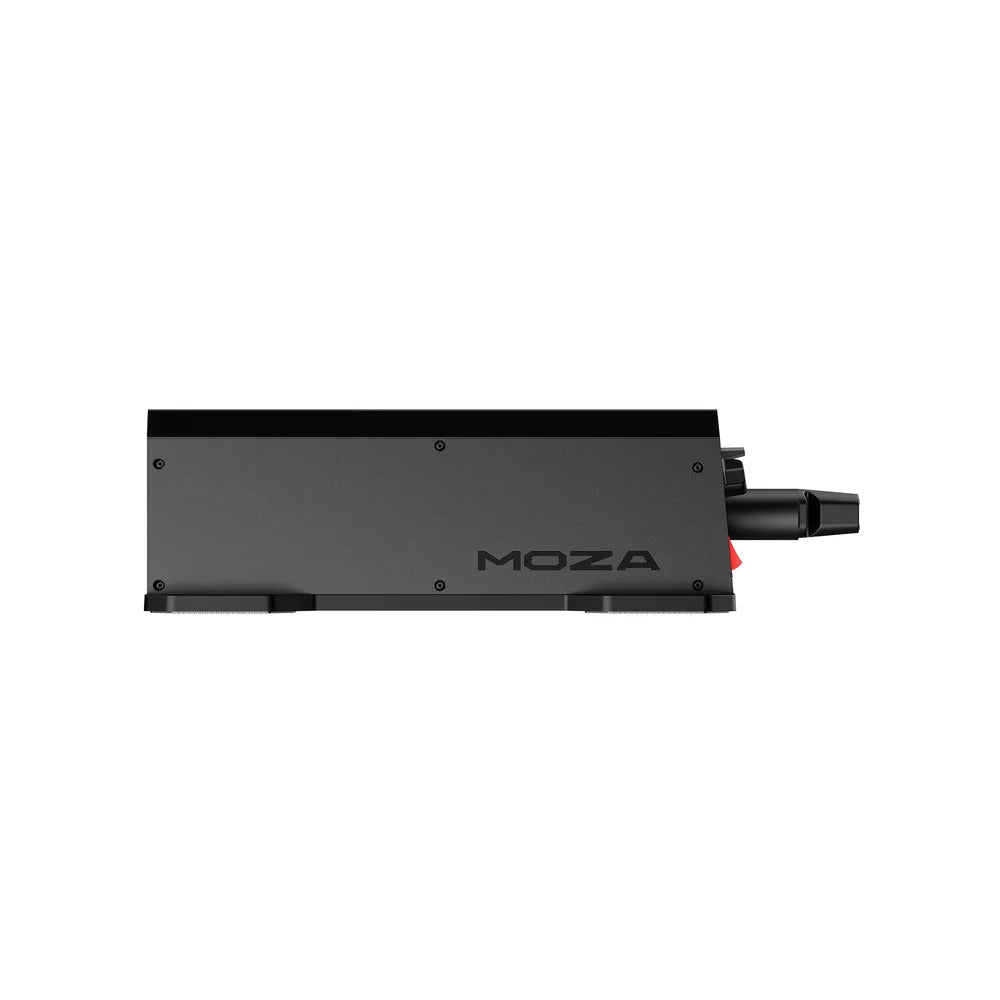

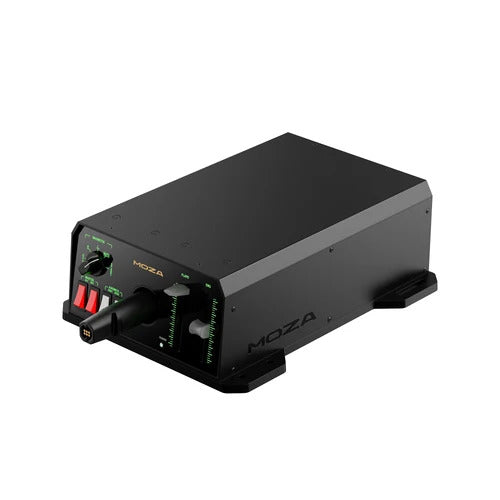

MOZA AY90 Force Feedback Yoke Base

The MOZA AY90 combines a full 180° roll rotation range with 95mm of pitch travel, for a control experience that mimics the natural movements of a real aircraft yoke. The integrated control panel, inspired by classic general aviation cockpits, is fully programmable via MOZA Cockpit.

Key Features

• 4.2Nm roll torque and 90N push-pull force: realistic control forces that mimic the response of a real aircraft.
• 180° full roll rotation: (+90°/-90°), exactly like the natural range of motion of a real yoke.
• 95mm pitch travel: for smooth, precise pitch control.

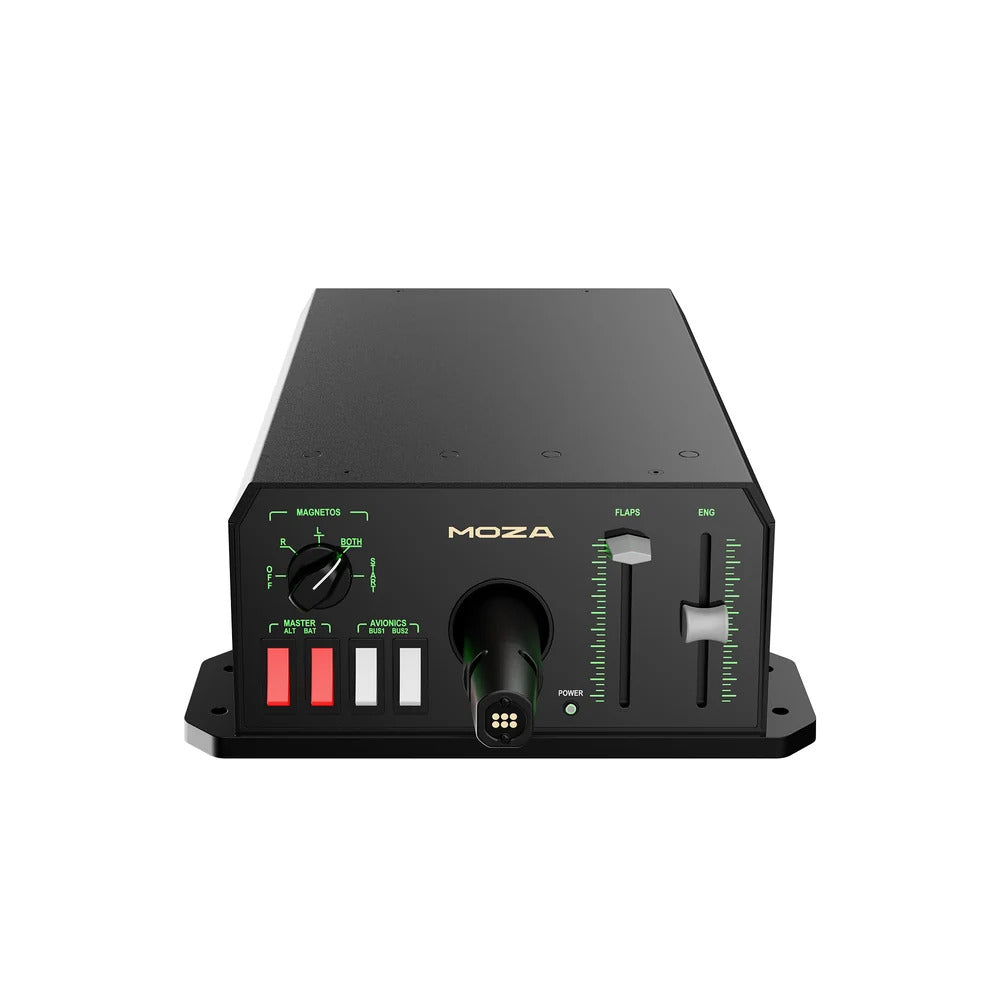

• Integrated control panel: multifunction hat switch, 4 toggle switches, and 2 sliders, inspired by classic general aviation cockpits.
• Aluminum quick-release: precision-machined, for fast, tool-free changes of your yoke with a zero-play, rock-solid connection.
• Customizable RGB lighting: 16.7 million colors, displays real-time telemetry such as engine RPM and throttle position.
• 15-bit magnetic encoder: precise position tracking for smooth, realistic control.

Specifications

• Platform: PC
• Maximum torque: 4.2 Nm (roll axis)
• Push-pull force: 90 N (pitch axis)
• Rotation range: ±90° (180° total)
• Pitch travel: 95mm
• Encoder: 15-bit magnetic
• Material: carbon fiber-reinforced composite (housing), aluminum alloy (quick release), ABS (button caps)
• Connection: aluminum quick release
• Control panel: 1x 5-way hat switch, 4x toggle switch, 2x slider
• Power supply: 12V, 6A
• Dimensions: 325 x 252 x 111 mm
• Weight: 4.5 kg
• Mounting: desk clamp or aluminum profile cockpit (80/20 compatible)
• Compatibility: MSFS 2024/2020/X, War Thunder, DCS World, Star Citizen, IL-2 Sturmovik, X-Plane 11/12
• Manufacturer part number:

Included

• AY90 Yoke Base
• Power adapter
• USB cable
• Sticker

Do you want to feel every flight control movement like in a real aircraft?

With the MOZA AY90, you combine powerful force feedback with a fully integrated control panel.
