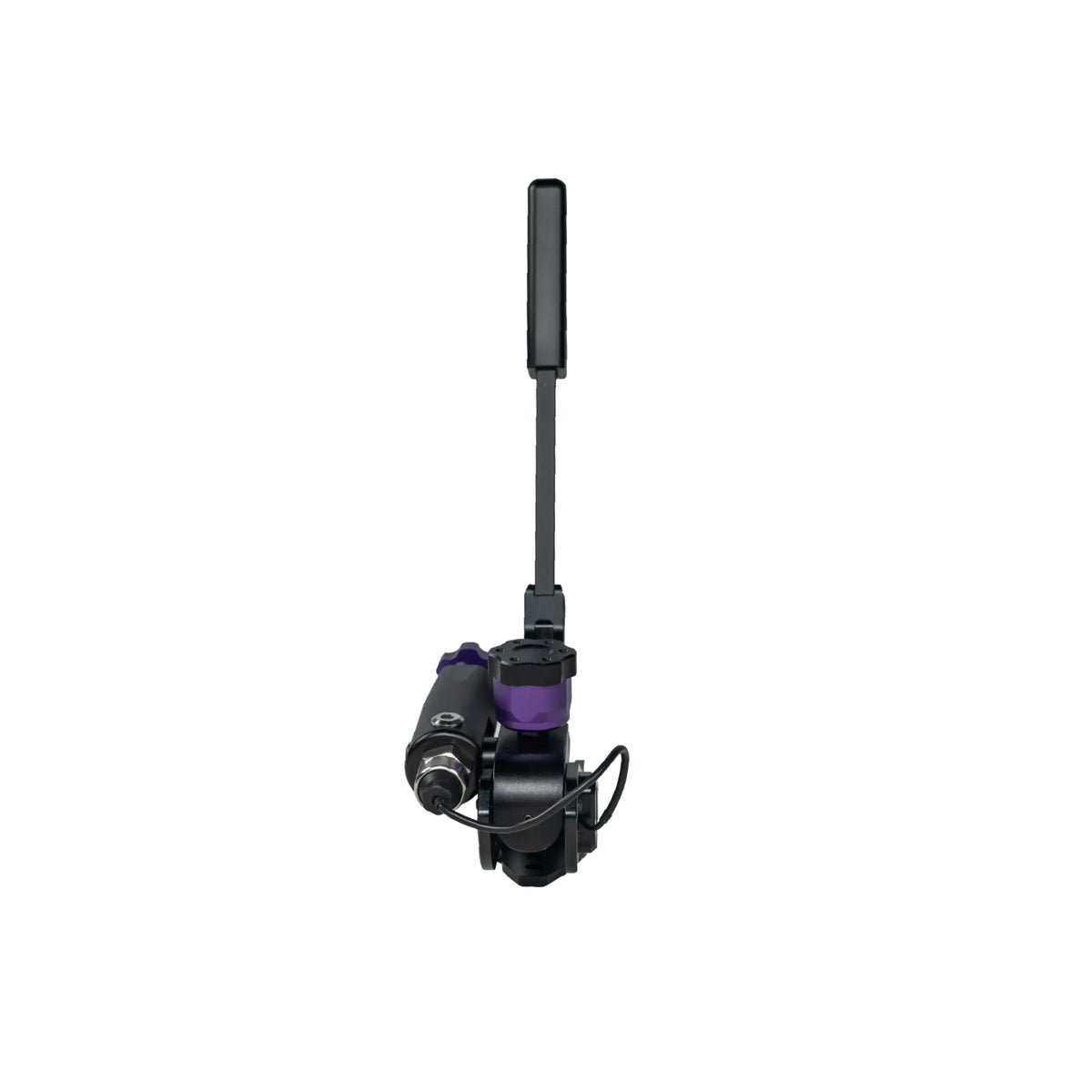

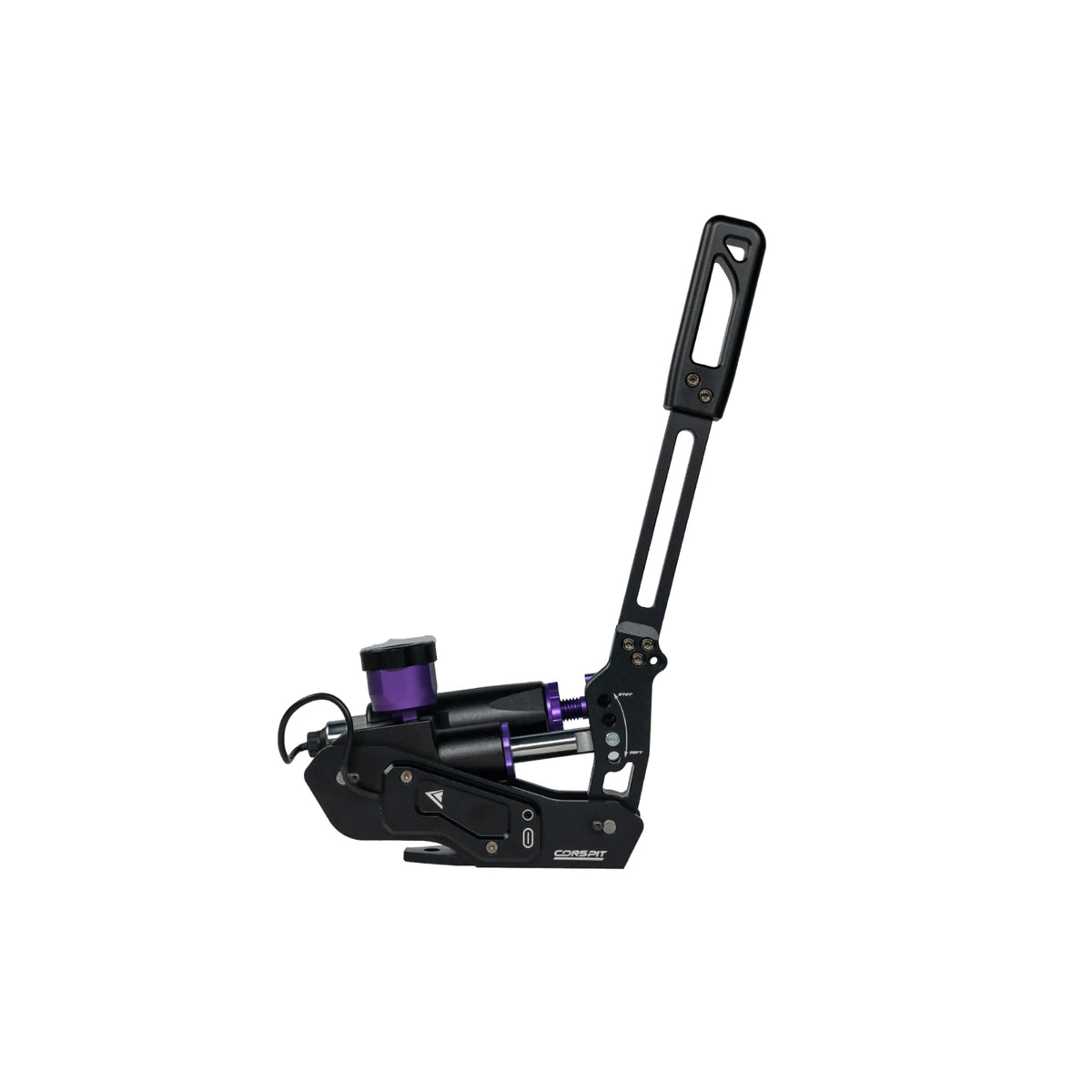

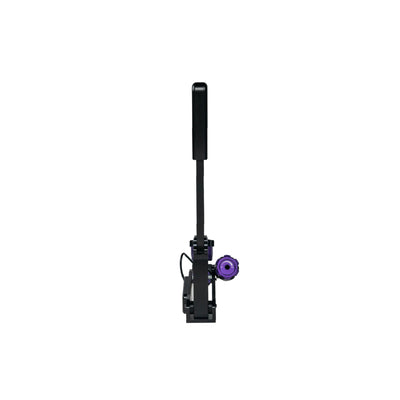

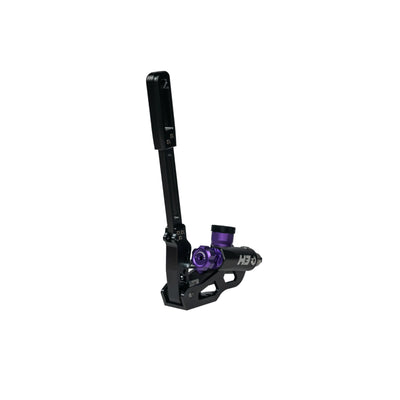

Conspit H3 Hydraulic Handbrake

The Conspit H3 is equipped with an upgraded hydraulic system and a 5Mpa high-precision sensor, allowing even the slightest steering inputs to be accurately registered for control over wheel slip. Thanks to the extended piston and precision-machined cylinder surfaces, operation remains smooth and durable, even under intensive use.

Key Features

• 5Mpa hydraulic sensor: registers even the smallest movements for precise control over rear wheel slip.
• Dual-mode lever position: easily switch between a classic (horizontal) and competitive (vertical) setup.
• 4-stage force adjustment: quickly adjust the pin position for up to a 2x difference in force between the lowest and highest settings.
• Adjustable preload: use the adjustment knob to set the initial tension and resistance of the lever.
• No mechanical play: precision-machined components ensure consistent feedback without play.
• Dust-proof bearings: high-quality sealed bearings protect moving parts for long-term reliability.
• Conspit Link 2.0 software: fine-tune your settings directly from your PC.

Specifications

• Platform: PC
• Sensor: hydraulic sensor, 5Mpa
• Material: aluminum alloy
• Setup: classic (horizontal) / competitive (vertical)
• Mounting: bottom, Φ6mm
• Connection: USB direct + Conspit CAN
• Cable: USB cable, CAN data cable
• Software: Conspit Link 2.0
• Dimensions: 218 x 81 x 320 mm
• Weight: 1.04 kg

Included

• H3 handbrake
• USB cable
• CAN data cable

Ready to control every drift or rally move with surgical precision?

With the Conspit H3, you can fully adjust force, lever position, and feel to match your driving style.
