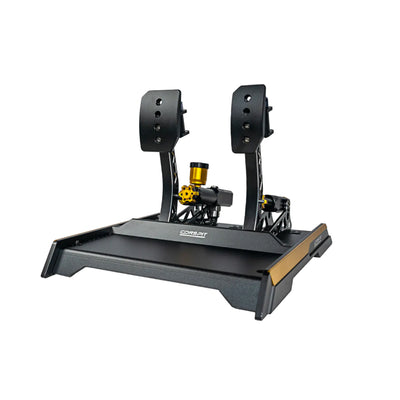

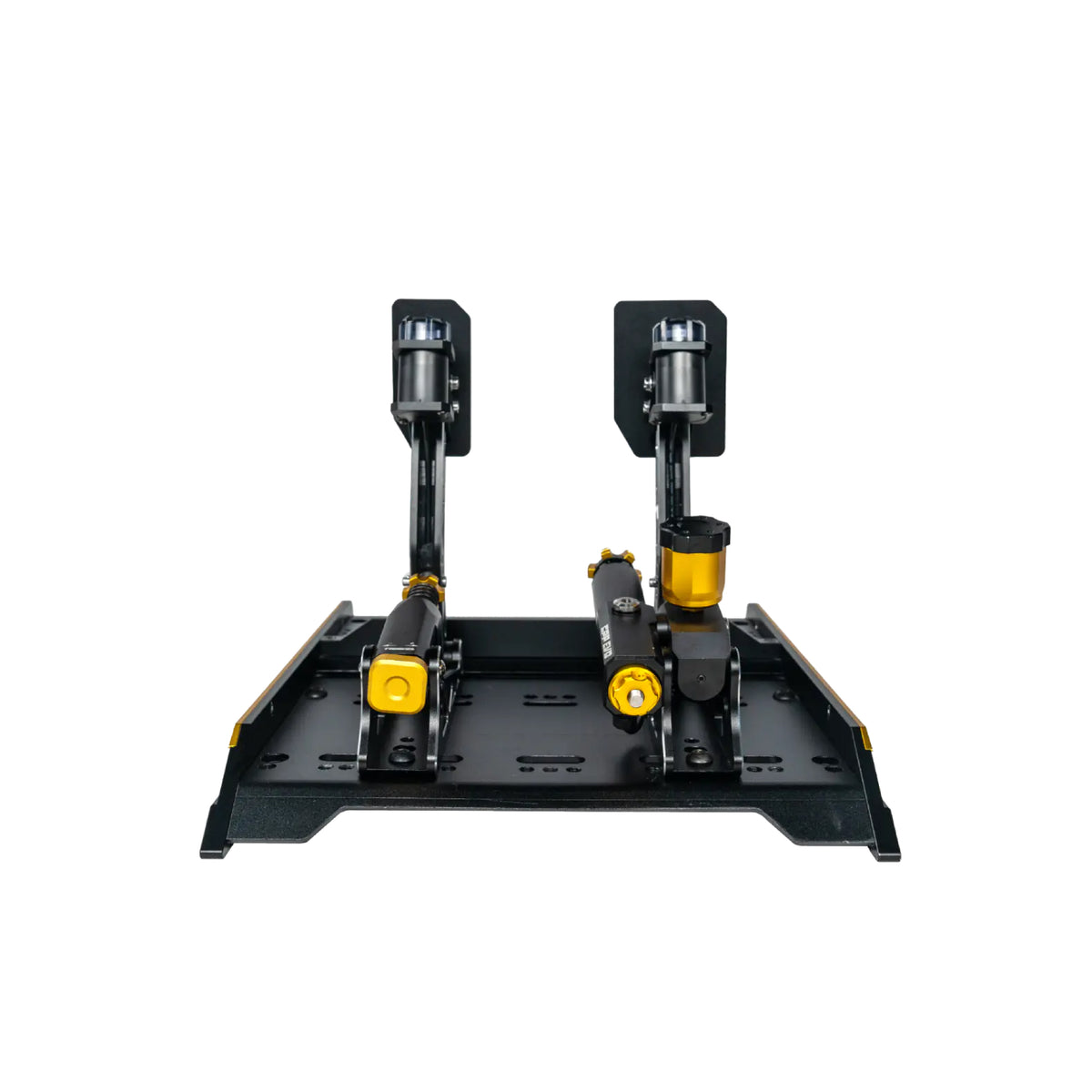

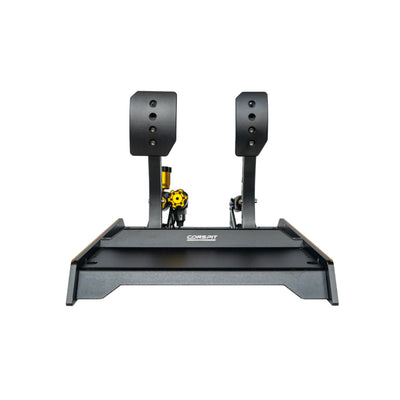

Conspit CPP EVO-2 Pedals

The Conspit CPP EVO-2 is equipped with Conspit's second-generation dual-stage hydraulic system, which mimics the real behavior of wheel cylinders in a car. A 20Mpa high-precision hydraulic sensor registers even the smallest pressure changes, for a braking feel that reacts to every action of your foot.

Key Features

• Dual-stage hydraulic system: starts soft thanks to the front elastomer and becomes gradually firmer the harder you brake, exactly like in a real car.
• 20Mpa hydraulic sensor: detects the smallest pressure changes for extremely accurate brake response.
• M-DVF vibration feedback module: included as standard, supports native iRacing vibration feedback and SimHub Shakeit motors.
• Fully adjustable ergonomics: pedal spacing, angle, height, and footrest can all be adjusted to your ideal driving position.
• Independent brake and clutch settings: 4 levels of preload for the throttle, and separate front and rear preload for the brake.
• Race-grade CNC aluminum construction: 6061-T6 aluminum with a sandblasted, anodized finish for durability.
• Conspit Link 2.0 software: adjust mapping curves, pressure limits, and calibration per pedal.

Specifications

• Type: Hydraulic (dual-stage)
• Pressure: 20 Mpa (~200 kg) hydraulic sensor
• Haptic feedback: M-DVF vibration module (iRacing native + SimHub Shakeit)
• Number of pedals: 2 (throttle, brake)
• Platform: PC
• Material: 6061-T6 CNC aluminum, anodized
• Mounting: Rig, aluminum profiles (e.g., GT-Lite, FP-Lite, GT-S)
• Connection: USB direct, Conspit CAN (coming soon)
• Dimensions: 332 x 396 x 285 mm

Included

• Pedal set (CPP EVO-2)
• USB-C to USB-C cable
• USB-C to USB-A adapter

Ready for a brake feel that is exactly like a real car?

With the Conspit CPP EVO-2, you can take your braking precision to the level of professional sim racers.
